Free Canoe Plan: 1898 Passamaquoddy Ocean Canoe

The 1898 Passamaquoody Decorated Ocean Canoe comes from page 82, Figure 74 of Edwin Adney and Howard Chapelle’s The Bark Canoes and Skin Boats of North America. The text notes that this is the last known canoe of this style built. Tomah Joseph of Princeton, Maine built the canoe based on a cedar and canvas porpoise-hunting canoe. It has similar pinched ends and rounded tumblehome as the Modern Malecite St. John River Canoe.

Length over all: 17ft 4in
Design beam: 36in
Design draft: 0.436in
Displacement: 510lb
Length of waterline: 15.8ft
Wetted surface area: 29.5ft^2
Optimum capacity: 300-800lb
Pounds to immerse an inch: 145lb

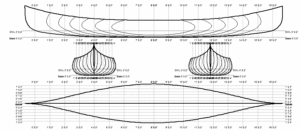

The linesplans show the profile, plans and station view of this canoe.

Free Canoe Plan Downloads and Package Downloads

Description

Free Linseplans: The free linesplans are station and stem drawings overlaid on each other. They are drawn at full size.

Drawing Package: The drawing package includes linesplans and each station and stem drawn separately on a PDF that prints full sized on when printed on the right paper size, usually ARCH D. You can cut these out and glue them to plywood to cut full-sized forms.
