The Unalaska baidarka appears as Figure 178 in the Bark Canoes and Skin Boats of North America. Howard I. Chapelle, the author, writes that it represents the standard design used throughout the Aleutian Islands and on the mainland as far east as Prince William Sound. The Aleuts also used this style in the Pribilof Islands and at St. Matthew as a sealing kayak. Chapelle notes that the bow varied from the style used in this free plan, but he says that the body style remained the same. The Aleuts also built this kayak in two-cockpit and three-cockpit versions.

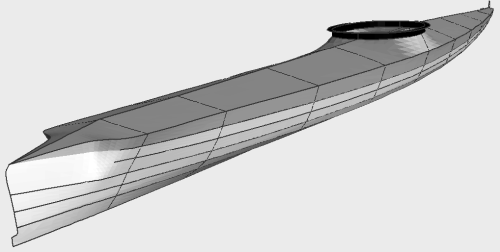

I had a hard long battle modeling this one. Like the last baidarka that I modeled for a set of plans, it took a ton of time. It didn’t help that Chapelle’s drawings don’t exactly match, so I fudged a little and went with what my eye and the computer program told me was fair. I’m extremely pleased with how I drew the bow and stern. It took time, but it really looks like the baidarka that I built. I think this bow looks really cool and I’d love to paddle this kayak. I bet it’s fast.
Specifications
Length: 17 feet 8.5 inches
Width: 20 inches
Draft: 4.8 inches
Displacement: 275 lbs.
Capacity: 140 to 325 lbs.
1894 Unalaska Baidarka Kayak Lines Plans
The lines plans show different station intervals than the pdf. Click on it to see a big version.
Free Kayak Plan Downloads and Package Downloads
Description
Free Linseplans: The free linesplans are station and stem drawings overlaid on each other. They are drawn at full size.
Drawing Package: The drawing package includes linesplans and each station and stem drawn separately on a PDF that prints full sized on when printed on the right paper size, usually ARCH D. You can cut these out and glue them to plywood to cut full-sized forms.
Recommended Books to Buy Before Building
Building Strip-Planked Boats The newest book by kayak and canoe building authority, Nick Schade. A must have.
The Strip-Built Sea Kayak: Three Rugged, Beautiful Boats You Can Build The gold standard of kayak building books. Clearly explains all the sets of boat building from tools to epoxy work. There are so many tricks and tips in this book that you’ll be able to save time.
Kayakcraft: Fine Woodstrip Kayak Construction Presents a slightly different way to build cedar strip kayaks. Lots of great ideas.
The New Kayak Shop: More Elegant Wooden Kayaks Anyone Can Build If stitch and glue is your thing, then this is the book to get.
Or if you use a RSS Feed Reader subscribe via our RSS Feed.
5 Comments
Ariel
Hello Bryan
I am interested in purchasing pdf of the electronic drawing package of 1894 Unalaska Baidarka Kayak.
I have some questions, I hope you help me solve them.
1- In your plan you determine the position of the cockpit?
2- In addition to the water line, do you determine the line between hull and deck?
3- It is possible to make a large cockpit
4- In your free plans the drawing of the frames is made with small straight lines, this is the same in the plan that you sell.
5- Someone has built your design before
I think that’s all
My congratulations on your contribution to the world of kayaking.
I have built a Nikumi and a Kidarta from the builder Tom Yost. I love the Baidarkas.
This would be my first build with the strip system
Thanks for everything
Bryan Hansel
To be clear, this isn’t my design or plan. It’s a historic skin-on-frame boat surveyed around the turn of the 20th century. The cockpit placement is where the builder put it. You can see how the deck/hull is divided in the study plan. The drawings are the same as the study plans, except that the individual stations are drawn separately. The cockpit size is determined by a builder if someone were to build it. I’m not sure what you mean be question 4, but the stations are exactly the same. Here’s one example of it having been replicated: https://www.paddlinglight.com/articles/skin-on-frame-version-of-the-unalaska-baidarka/
Also, there isn’t an instruction manual or anything. These are drawings only.
